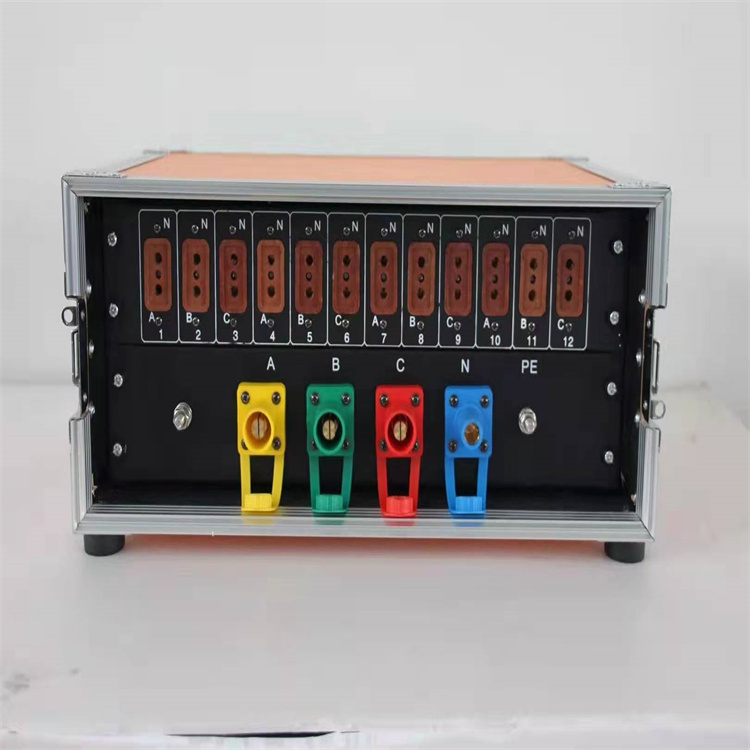

12 way X4KW straight through cabinet
Specifications:
No light effect information available at the moment
Detailed description:
Technical parameters and features:
(1) Power supply: three-phase five wire AC 380V ± 10%, frequency 50Hz ± 5%
(2) Rated power: 12 x 4KW; 40A rubber wood plug per channel, suitable for any load
(3) Overload and short circuit dual protection high breaking air switch Input method 200A rhinoceros plug.
(4) A.B.C. three-phase working indicator light Equipped with a 125A main switch,
Operation Instructions:
1. Please connect the required power supply equipment before use. This product can be directly connected to 12 X4KW conventional stage lighting fixtures
Or 12 X4KW computer-controlled special effects lights, with 12 separate controls;
2. Connect AC380V three-phase power again, paying attention that the live wire (A.B.C.) and neutral wire (N) cannot be reversed, and the grounding wire (PE) should be well grounded. At this time, the panel indicator light will light up and the air switch will be turned on,
At this point, the connected lighting fixtures should light up and display the three-phase voltage accurately.
