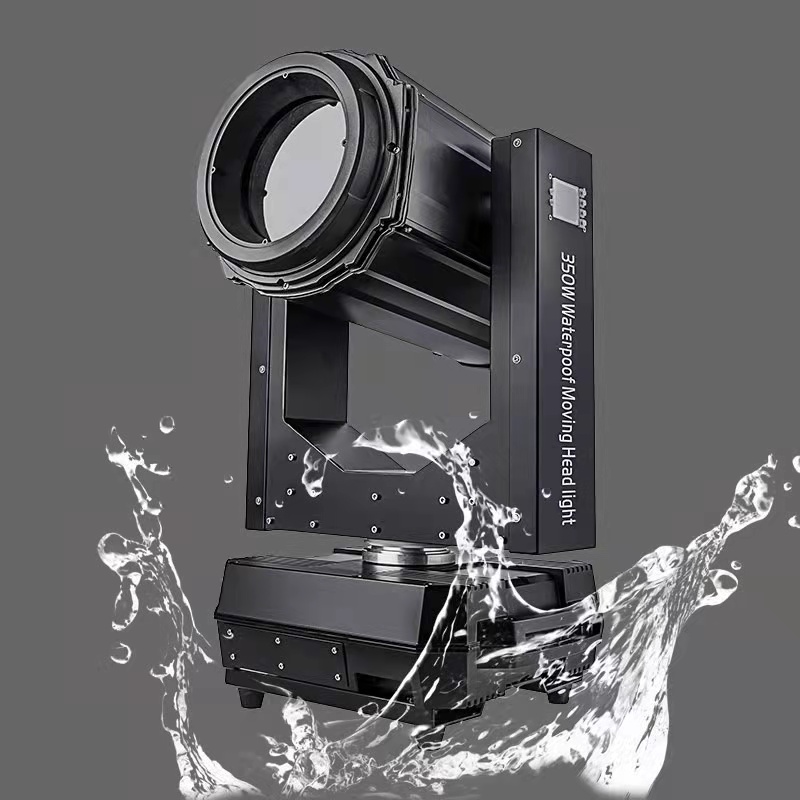

350W Outdoor Waterproof Beam Moving Head Light
Specifications:
No light effect information available at the moment
Detailed description:
Technical Specifications:
Latest motherboard program: Supports RDM function, built-in program: Built in multiple effect programs, can achieve single beam white left and right slow swing, single beam color changing left and right slow swing, and multi beam color changing left and right slow swing.
Voltage: Wide voltage 110V-240V 50-60Hz
Light source: 350W Osram Japan Phoenix Bubble Total power: 500W
Color: Color palette: 13+1+Rainbow effect+Atomization function
Pattern: Pattern plate: 13 fixed patterns+1 white light
Focusing: Electronic linear high-definition dynamic focusing, using high-density glass optical lens.
Linear dimming curve: 0% -100% linear dimming
Beam angle: 2 °
Channel: 16/20 international standard DMX512 channels.
Lens diameter: 150mm
XY motor: Three electric drives, powerful, faster, more stable, and quieter
Appearance: High temperature resistant die cast aluminum shell, lightweight in size, using wind direction drainage and temperature intelligent monitoring technology, fast heat dissipation!
Waterproof rating: IP65
Control mode: DMX 512, self-propelled, master-slave self-propelled
Prism: 48 Prisms (24+16+8) stacked and rotatable, macro function
Display screen: LCD display screen adapts to different installation positions
Horizontal/Vertical: The 350 waterproof light fixture can perform 540 ° horizontal or 270 ° vertical scanning, with fast and stable speed,
The lighting fixture is equipped with an intelligent photoelectric reset correction system, which can automatically respond to accidental misoperation
The original location. In addition, it has horizontal and vertical locking buttons, making maintenance and transportation more convenient.
Cooling system:
Using CFD software to analyze and calculate the heat flow of lighting fixtures, and design a low-noise heat dissipation system
The fan drive has excellent performance and extremely low noise.
Lamp body size: 37 * 30 * 68cm Net weight: 23KG
Packaging size: 55 * 44 * 68cm Gross weight: 27KG
Air box one pack one: 42 * 37 * 91cm Weight: 37KG
Air box one pack two: 92 * 41 * 91cm Weight: 70kg
Not to be outdone, compact in appearance, powerful in energy, with a thick beam of light
Waterproof beam lights meet high industry standards in terms of optical, structural, and appearance performance. They use advanced technology for high brightness light sources, optical technology, and rigorous industrial design to ensure the perfect presentation of lighting design
