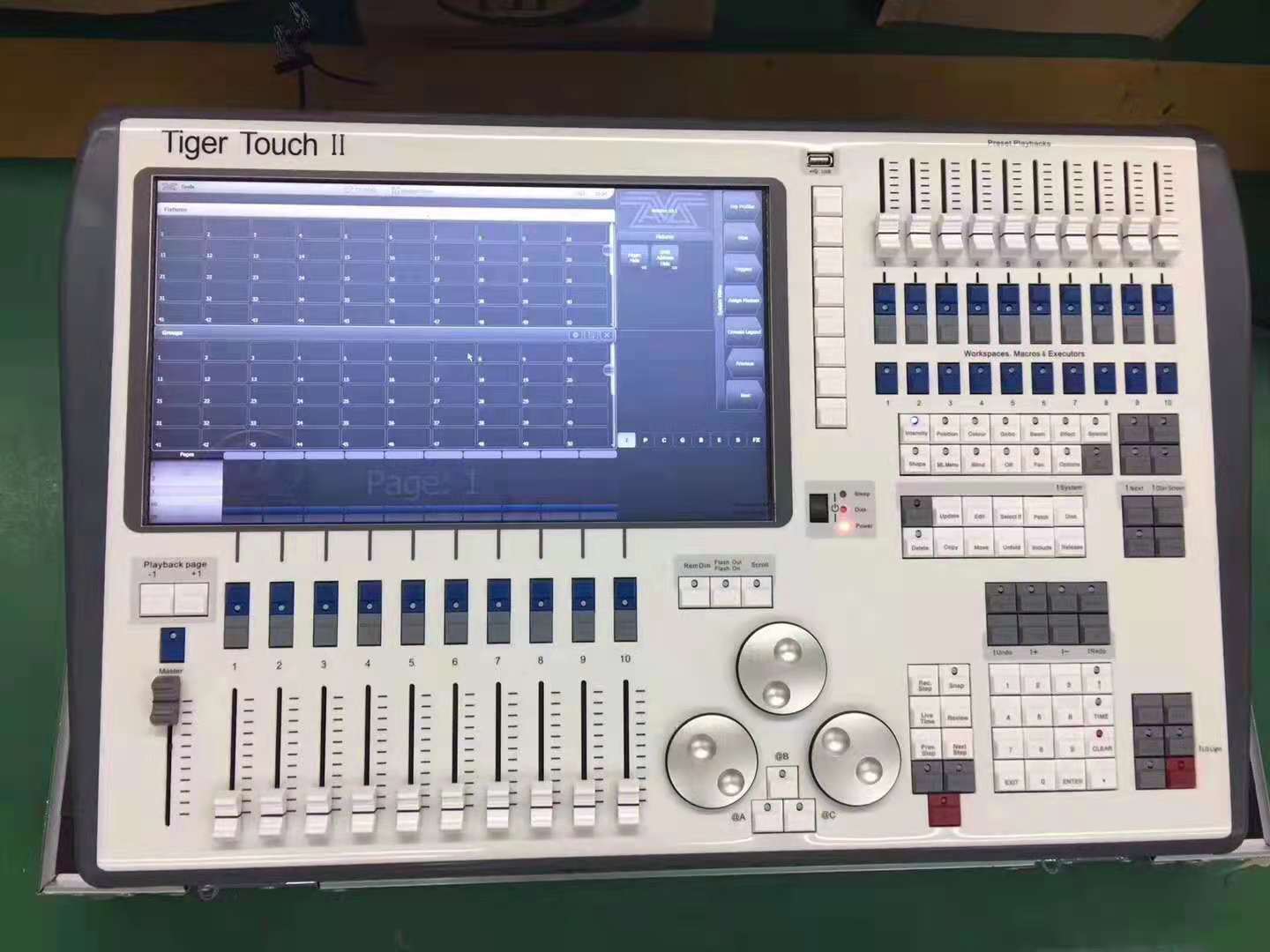

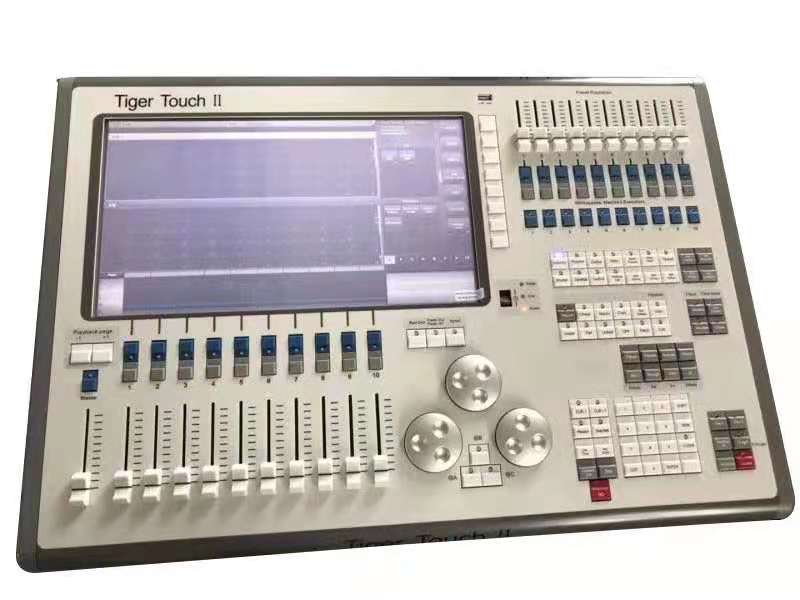

Adopting the powerful Titan operating system

Core dual core processor, 60GB solid-state drive, 2G memory

Support Chinese menu display and built-in multiple languages

Built in a 15.4-inch touch screen. And can be extended with a 17 inch touch screen

4 DMX output ports, 2048 DMX channels

Supports Artnet and can be expanded to 12 DMX output ports and 6144 channel signal source control modes. It also supports Remote Device Management bidirectional signal transmission and Artnet network signal transmission function

10 macro keys that can edit any program

20 replay push rods, supporting 1000 virtual replays

Powerful CMY color palette functionality.

Support graffiti style handwritten naming function

Supports CITP protocol and can preview built-in materials of servers or digital lights

Reserve an external WI-FI access point that can be remotely controlled using iPod Touch and iPhone

Built in thousands of light libraries and built-in light library editing software

Built in Visualiser visual stage simulation software, supporting video

Provide MIDI time code control, controlled by MIDI remote playback button or pusher

Built in pixel mapping and built-in graphics generator

The powerful Titan system is more user-friendly compared to the previous classic Pearl system. Each function is more refined.

Expand more extensively. Give you more flexibility in lighting operations. By retaining the classic pearl style and layout, we have added a refined selection of functions.

Excluding some less commonly used and impractical operations. After upgrading the console, let the lighting technician quickly get started on the basis of Pearl Tower operation.

Hardware Design:

The connection between Tiger Touch and the lighting fixtures uses the DMX512 protocol. It has 12 DMX universes (each with 512 control channels).

Four of the DMX physical outputs are directly connected to the lighting fixtures, and can also send DMX signals through Ethernet and wireless Ethernet.

Allow connection to remote DMX nodes and ACDI systems used to connect to visualizer.

Four physical DMX signal output ports and MIDI interface

The console adopts high-quality program drivers and buttons produced in Taiwan. More than 100000 push pull and button action tests. This ensures that the control panel can work normally under high-frequency use.

TT's replay program push rod and fixed program push rod

The touch tiger of the Titan system has added a CUE LIST in programming functionality.

The difference between cue lists and chases is that Chases cross fade between cue, while tracks change between cue.

The cue list allows you to record a series of cue items, each with an independent time setting that can be triggered by the Go key or automatically run to the next cue.

This allows you to create a complete show in one LIST..

The touch tiger console adopts German imported encoders and pure aluminum sandblasted wheels, making it easier to adjust the three attribute wheels. In addition to the function of adjusting attributes. There is also the option to scroll up and down to switch to the page and select program steps.

TT has rich extension interfaces. 2 USB 2.0 interfaces; MIDI input and output interfaces; 25 pin serial port, capable of connecting to printers, etc;

Ethernet network interface; Gooseneck light interface; PS2 keyboard and mouse interface; VGA interface; Audio input, output, microphone interface; Fiber optic interface; One backup USB interface or light recording output.

The height of the console can be adjusted. Achieve ideal screen visual effects
